Hughes

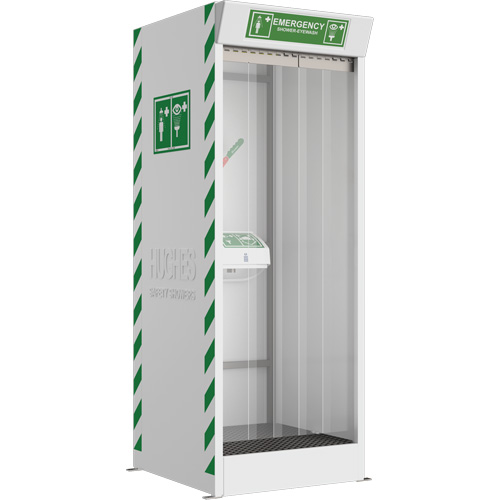

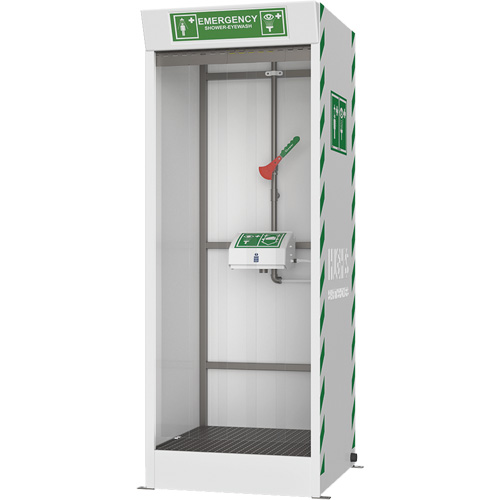

Emergency Cubicle Shower & Covered Eye & Face Wash

Model: SHL786

Mfr. No.: SD32K45G

  • Emergency Cubicle Shower & Covered Eye & Face Wash Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Manufacturer's Warranty

  • 1 Year

Inlet Location

Middle

Water Inlet

1" (M)

Operating Pressure

29 - 87 PSI

Water Flow (Shower/Body)

76 Liters/min.

Water Flow (Eye/Face)

11.4 Litres/min.

Country Of Origin

United Kingdom

  • Integral drain sump and strip screens fitted to entrance reduce the risk of surplus contaminated water outside of the cubicle area
  • Eye/face wash with integral, durable acrylic capped ABS lid protects against dust and debris—activate by simply pulling down the cover
  • Designed for locations where space is at a premium or the emergency safety shower needs to be enclosed, this all-in-one ANSI-compliant combination cubicle shower and eye/face wash helps prevent overspray and is activated by hand upon entry
  • The cubicle shower has a stainless steel hollow section frame enclosed in GRP sheeting with stainless steel pipes for corrosion resistance and extended life
  • The exterior sheeting includes universal pictogram signs and green and white safety stripes
  • Mounted on the inside of the cubicle for maximum benefit, the eye/face wash with high, ANSI-compliant flow rate includes aerated diffusers with fine mesh strainers and an individual flow controller which provide a soft, scrubbing action to the eyes and face
  • Covered bowl also ensures that the eyewash nozzles and bowl remain clean and free from contamination at all times—no dust covers needed. Easy-to-reach flow regulator valve positioned on side of bowl adjusts to suit the severity of the accident
  • The system features a specially designed, high-performance quarter-turn ball valve made of 316L stainless steel to endure the harshest environments and site conditions
  • Low operating torque to open valve offers reliable, easy on/off operation when emergencies occur
  • Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure
