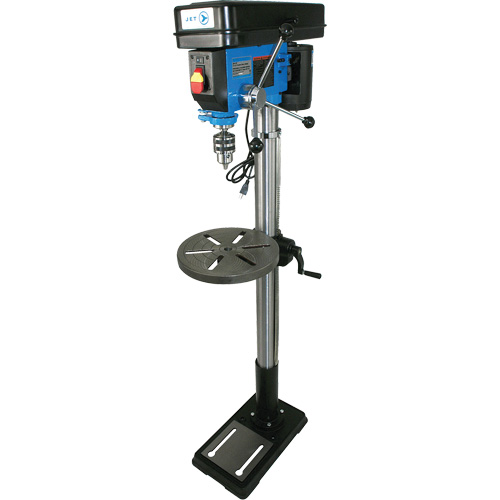

JDP-13F Floor Drill Press, 13-1/4", 5/8" Chuck, 3000 RPM

Model: TDW260

Mfr. No.: 200275

  • JDP-13F Floor Drill Press, 13-1/4", 5/8" Chuck, 3000 RPM Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Swing

13-1/4"

Chuck Size

5/8"

No Load Speed

3000 RPM

Table Dimensions

10" W x 16-1/2" L x 61-5/8" H

Overall Width

10"

Overall Length

16-1/2"

Overall Height

61-5/8"

Horsepower

3/4 HP

Voltage

115/230 V

Amperage

5.2/2.6 A

Column Diameter

2-7/8"

Number Of Spindle Speeds

12

Spindle Taper

MT2

Spindle To Table Distance

31-1/2"

Spindle Travel

3-1/8"

Table Size

11-3/8" Diameter

Country Of Origin

China

  • Safety on/off switch with removable lock-out key
  • Worktable with quick-release clamp rotates and tilts to 45 deg right and left
  • Fully hinged belt and pulley cover and fully adjustable motor mount permit fast changes of spindle speed
  • Built-in work lamp with separate switch (bulb not included)
  • 12-speed capability allows for a broad assortment of drilling applications
  • Positive depth setting mechanism uses a threaded rod and two locknuts for accuracy
  • Slots in worktable permit easy clamping of the workpiece
  • Drill chuck and key standard equipment
  • Powerful 3/4 horse power motor
