King Canada

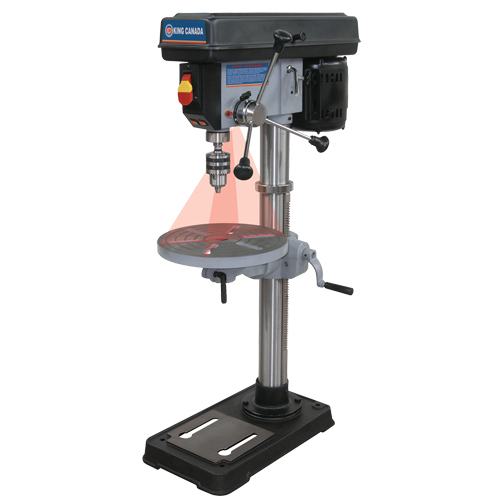

Drill Presses With Laser, 13", 5/8" Chuck, 3670 RPM

Model: BV666

Mfr. No.: KC-116N

  • Drill Presses With Laser, 13", 5/8" Chuck, 3670 RPM Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Swing

13"

Chuck Size

5/8"

No Load Speed

3670 RPM

Table Dimensions

12-13/16"

Overall Width

25"

Overall Length

12-13/16"

Overall Height

42"

Max. Distance Chuck To Table

13-3/4"

Max. Distance Chuck To Base

26"

No. Of Speeds

16

Speed Range

210-3670 RPM

Spindle Taper

#2 Morse

Motor

7.5 A, 1 phase, 60 Hz

Voltage

110 V

Weight

125 lbs.

  • Spindle is supported by high quality ball bearings
  • Cast-iron pulleys reduces vibrations
  • Comes with non-slip rubber feed handles
  • 45° tilting table for angular drilling
  • Locking depth stop for accurate repetitive blind hole drilling
  • Includes: 5/8" drill chuck and key
  • Light socket incorporated into drill press head (standard light bulb not included)
