King Canada

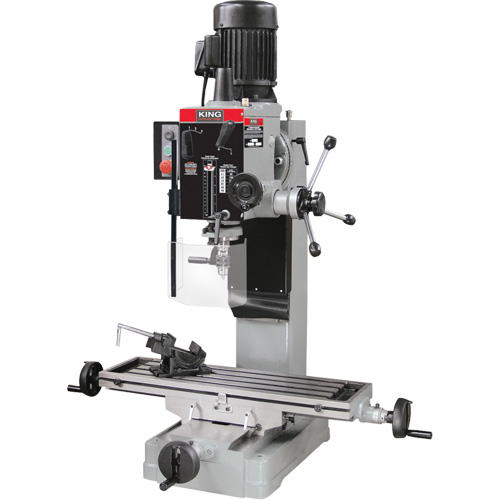

Gearhead Drilling Machine, 6 Speeds, 1-1/4" Drilling Capacity

Model: TS209

Mfr. No.: KC-45

  • Gearhead Drilling Machine, 6 Speeds, 1-1/4" Drilling Capacity Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Drilling Capacity

1-1/4"

No. Of Speeds

6

Table Size

9-1/2" W X 32-1/4" L

Overall Width

36"

Overall Length

47"

Overall Height

55"

Number Of Speeds

6 (60-1500 RPM)

Speeds

6 (60-1500 RPM)

  • Spindle is equipped with four heavy-duty tapered roller bearings
  • Table control hand wheels have large micrometer dials graduated in .001"
  • Powerful 1.5 HP single phase motor
  • Head tilts 90° to the left and 30° to the right
  • Includes: 3" face cutter and 3 1/2" angle vise ; ; Model No.TS209 ; Mfg. No.KC-45; Drilling capacity: 1 1/4" ; Speeds: 6 (60-1500 RPM) ; Working area of the table: 9 1/2" x 32 1/4" ; Size of T-slot on table:5/8" ; Motor: 11 A @ 220 V, ; single phase, 60 Hz; Voltage:220 V ; Dimensions: 47" L x 34" W x 55" H; Approx. shipping weight: 700 lbs.
