Lincoln Electric

Square Wave® 205 TIG Welder

Model: TTV841

Mfr. No.: K5613-1

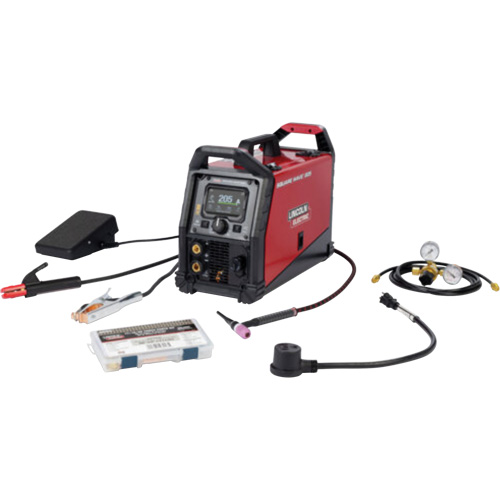

  • Square Wave® 205 TIG Welder Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Includes

  • Square Wave 205 TIG Welder
  • K5339-17F-1 Caliber 17 TIG Torch Ready-Pak®
  • K870 Foot Amptrol™
  • Gas Regulator/Flowmeter & 10 ft (3 m) Gas Hose Kit
  • Stick Electrode Holder 200A
  • Ground Clamp & Cable
  • 120 & 230V Adapter
  • Caliber® 17/18/26 Series TIG Torch Expendables Kit - 0.040"-3/32" (KP4760-MD)
  • Caliber® 17 Series TIG Torch Ready Pak - Rigid, 12.5 ft. (3.8 m) (K5339-17-1)
  • Model 601-Ar5-30-580 Single-Stage Flow gauge Regulator (3000369)
  • Foot Amptrol™ - 25 ft (7.6m) (6 pin) (K870)

Manufacturer's Warranty

  • 3 Years

Voltage Input Power

120 V/230 V

Phase Input Power

1 Ph

Dimensions

18.5" H x 8" W x 13" D (470 mm x 203 mm x 330 mm)

Weight

36 lbs. (16 kg)

Machines Processes

Stick (SMAW), TIG (GTAW)

Amphenol Pins

6

Work Lead Connector Type

Dinse

Work Cable Length

10'

Applications

Automotive, Brewery, Distillery, General Fabrication, Maintenance & Repair

Country Of Origin

Mexico

  • For a wider or tighter welding bead, users can easily adjust AC Frequency Control
  • AC Balance can be adjusted to provide more cleaning action on dirty aluminum or to maximize penetration on thick materials
  • The multi-process machine can TIG weld when precision and bead appearance are important
  • Users also have the advantage of stick welding capability for outdoor work or thicker materials
  • Plug in the Square Wave 205 where you need it - a standard 120V circuit or 230V for maximum output
  • Portable and convenient to use, only 36lbs (16 kg)
