NORCO Lifting

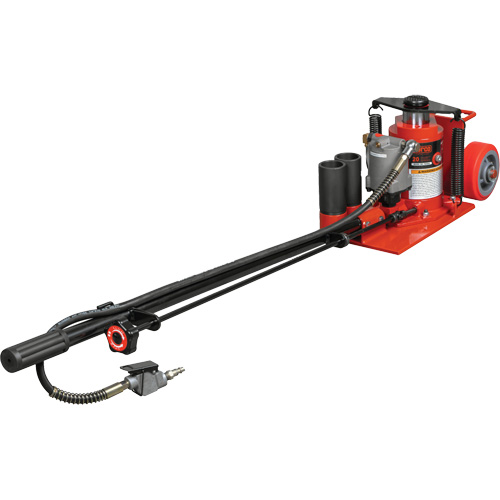

Low Height Floor Jack, 20 Ton(s) Capacity, 8-5/8" Lowered, 22-3/4" Raised, Air Hydraulic

Model: FLV863

Mfr. No.: 72090A

  • Low Height Floor Jack, 20 Ton(s) Capacity, 8-5/8" Lowered, 22-3/4" Raised, Air Hydraulic Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Lifting Capacity

20 Ton(s)

Lowered Height

8-5/8"

Raised Height

22-3/4"

Operation Type

Air Hydraulic

Stroke Length

4.125"

Screw Extension

2"

Base Size

9.25" x 17.25"

Pressure Range

100 to 130 PSI

Wheel Diameter

5-1/4"

Handle Length

36-1/2"

Country Of Origin

Taiwan

  • Intended for heavy duty truck, agricultural and heavy construction equipment
  • Ideal for loaded truck and trailer roadside service calls
  • Lightweight which makes it perfect for mobile repair service
  • Long handle with 36-1/2” reach helps in positioning jack under vehicles with low overhang
  • May be stored in a vertical position
  • Compact design fits easily between tandem wheels
  • Parkerized coating on pump piston, extension screw and extension adapters and chrome coated ram offer protection against rust
  • Removable extension screw is used with the two 4” extension adapters (included) for added height when necessary
  • Self-retracting ram eliminates manual lowering of the jack
  • The 5-1/4” diameter high impact composite wheels make maneuverability easy
  • Fast efficient air pump reduces lifting time and has a built-in relief mechanism which prevents the jack from being used beyond its maximum allowable capacity
  • Convenient push button air valve connected to an in-line filter prohibits contaminates from entering the air/hydraulic system
