NORCO Lifting

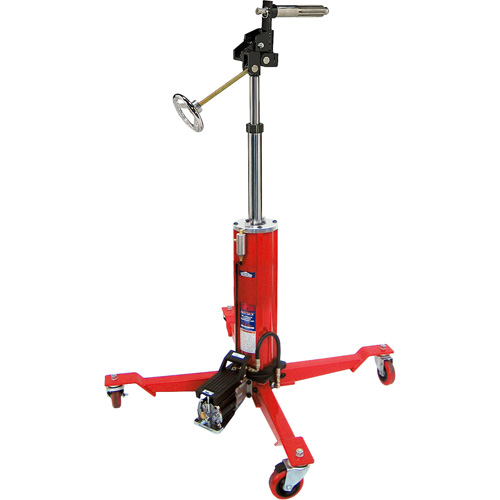

Telescopic Under Hoist Air Hydraulic Clutch Jack, 3/20 tons Capacity, 38-1/4" - 73-1/2" H

Model: FLU727

Mfr. No.: 72035

  • Telescopic Under Hoist Air Hydraulic Clutch Jack, 3/20 tons Capacity, 38-1/4" - 73-1/2" H Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Lifting Capacity

3/20 tons

Lowered Height

38-1/4"

Raised Height

73-1/2"

Base Dimensions

35" x 35"

Country Of Origin

Taiwan

  • Designed for the removal, installation and transportation (in the lowered position) of 14” and 15-1/2” heavy duty clutches and flywheels on trucks that are raised by an in-ground or above-ground lift
  • Tilting saddle activated by an integrated screw with machine handle enables the clutch to be positioned in either a horizontal position for clearing underneath truck or vertical position for installation and removal
  • 2” and 1-3/4” diameter spline shafts rotate 360˚ for clutch and engine alignment
  • Air/hydraulic foot pump provides hands free operation and easy, convenient lifting
  • Metered pump provides safe lowering of load
  • Two-stage flash chromed rams inhibit rust from entering hydraulic system
  • Polyurethane wheels provide protection for tile and epoxy floors
