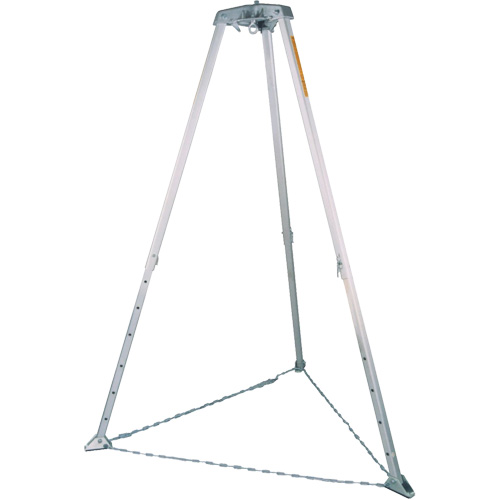

Miller® 51X Tripod

Model: SHB911

Mfr. No.: 51X/9FT

  • Miller® 51X Tripod Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Certification(s)

ANSI Z359.1 & OSHA 1926.502

Weight

42 lbs. (19.1 kg)

Max Working Load

400 lbs./181.4 kg (US) & 1100 lbs./500 kg (EN795)

Max Materials Load

1,000 lbs./453.6 kg (US)

Leg Adjustment Increments

5.5"

Tripod Cap Material

Aluminum

Legs Material

Aluminum

Feet Material

Aluminum & Rubber

Chain Material

Zinc Plated Steel

  • Anchorage connector for typical confined space and rescue systems
  • The lightweight, high-strength aluminum construction can withstand up to 5,000 lbs. (22kN) of vertical pull
  • The adjustable legs with integral push pins can easily adapt to uneven surfaces
  • The built-in safety chain and feet with rubber skid pads and serrated edge prevent movement on slippery surfaces
  • 9' (2.7m) high with the legs extended to the highest position
  • The center anchorage eyebolt should always be used for fall protection with the side eyebolt anchorage on the cap being used for hoisting/lifting of materials or workers
  • All hardware meets ASTM fifty hour salt spray test requirements
