PTC Instruments

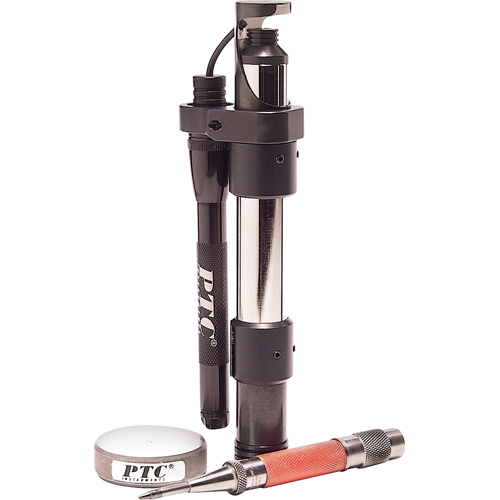

Steel Hardness Tester

Model: HB605

Mfr. No.: 316

  • Steel Hardness Tester Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

  • Designed for accurate, rapid in place measurement of the hardness of steel and steel alloys in the range from 20 to 65 on the equivalent Rockwell C Scale
  • Unit consists of two major components: calibrated indenter and direct reading microscope
  • Hand-held impact indenter drives a 1/16" diameter tungsten carbide ball into the sample being tested
  • Resulting indentation diameter is measured with 60X microscope
  • Calibrated reticle in the microscope reads C Scale directly with an accuracy of ±1.5 points
  • Illumination system features a MagLite® flashlight with a fiber optic pipe that directs the light to the focus of the microscope
  • Flat or curved surfaces of virtually any configuration may be measured
  • Particularly useful where the test piece is too large or too heavy to test on bench-type tester
