Reed Instruments

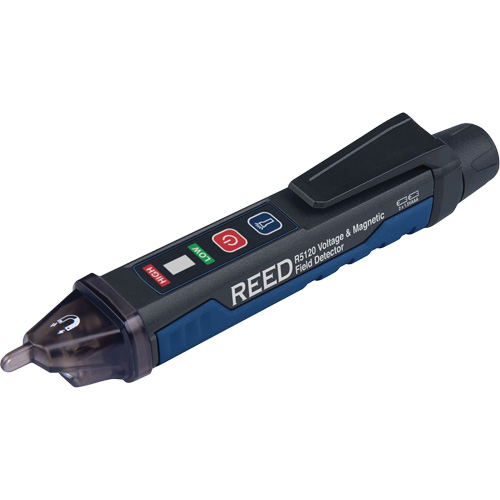

Non-Contact Voltage and Magnetic Field Detector, 24 VAC - 100 VAC/90 VAC - 1000 VAC, Light & Sound Alert

Model: IC856

Mfr. No.: R5120

  • Non-Contact Voltage and Magnetic Field Detector, 24 VAC - 100 VAC/90 VAC - 1000 VAC, Light & Sound Alert Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

In Stock

Voltage Detection

24 VAC - 100 VAC/90 VAC - 1000 VAC

Alert Type

Light & Sound

Frequency Range

50 to 60Hz

Power Supply

(2) AAA Batteries

Overvoltage Category

CAT. IV 1000V

Certification(s)

CE, IP67, ETL (Conforms to UL STD 61010-1, 61010-2-030, Certified to CSA STD C22.2 No. 61010-1, 61010-2-030)

Operating Temperature

32 to 104°F (0 to 40°C)

Operating Humidity Range

0 to 80%

Maximum Operating Altitude

6561' (2000m)

Dimensions

6.3" x 1" x 0.9" (160 x 25 x 22mm)

Weight

2.5 oz. (72g)

  • AC voltage and magnetic field detector with built-in flashlight
  • Check receptacles or insulated wire for presence of AC voltage
  • Quickly determine the presence of magnetic fields to determine whether or not components are working properly
  • Double insulated housing for increased safety
  • Audible (buzzer) and visual (LED) indicators
  • Built-in flashlight
  • Pocket clip
  • Auto shut-off
  • Two voltage ranges allow it to detect both high (90 to 1000V) and low (24 to 1000V) AC voltage wiring
