Tractel

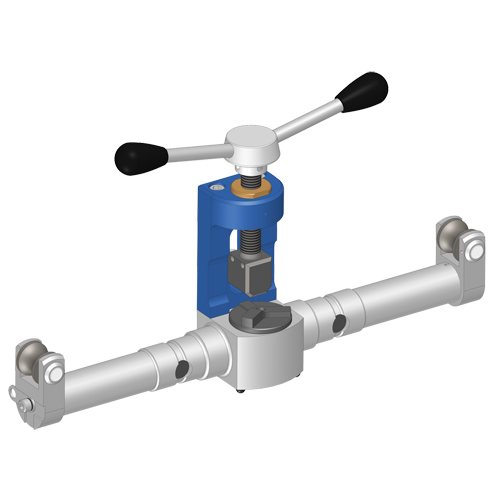

Dynarope Tensiometer HF 36/2/LPT

Model: LV288

Mfr. No.: 0187948

  • Dynarope Tensiometer HF 36/2/LPT Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Dynarope Software for Loader Groupe Belzile Dickner

Tractel

Dynarope Software for Loader

Model: LV289

Mfr. No.: 0193018

Sold as: Each

Working Load Limit Range

800 lbs - 40000 lbs. (400 kg - 20000 kg.)

Wire Rope Diameter

1-1/8"

Increments

50 lbs. (25 kg)

Min. Wire Rope Diameter

3/8"

  • Designed for measuring forces in pretension wire ropes that cannot be dismantled and for which tension must be known or confirmed
  • Fits directly onto the tensioned wire rope and is simply held in position by turning a handle
  • Device is comprised of a load cell with strain gauges and a display driven by a microprocessor
  • Display of the force measured by the load cell takes into account parameters you enter such as the diameter, composition and structure of the rope
  • Accuracy:<1% of nominal capacity
  • Operating temperature from -4 to 140°F (-20 to 60°C)
  • Displays mass or force
  • Protection: IP 65 (NEMA 4)
  • FOB Tractel, Montreal, Qc
