Vibrasystems

Anti-Vibration Cupmounts

Model: UD185

Mfr. No.: VSCM-1

  • Anti-Vibration Cupmounts Groupe Belzile Dickner

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Sold as: Each

Overall Length

6"

Overall Height

1-3/8"

Maximum Load In Lbs. Non-Impact Machinery

400

Maximum Load In Lbs. Impact Machinery

250

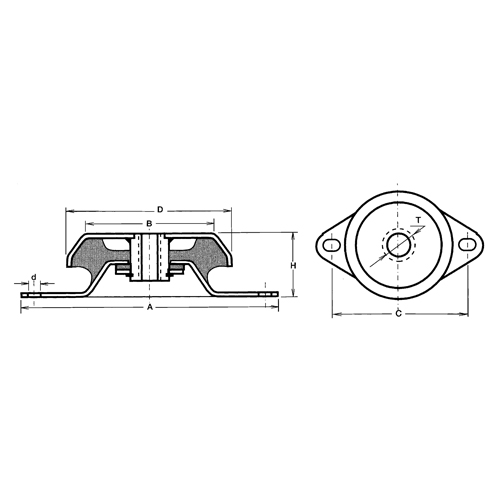

Mount Dimensions In Inches A

6

Mount Dimensions In Inches B

2.75

Mount Dimensions In Inches C

5

Mount Dimensions In Inches D

3.625

Mount Dimensions In Inches H

1.375

Mount Dimensions In Inches T

41276

  • High vibration dampening characteristics
  • Fail-safe, rugged interlocking metal and neoprene construction provides exceptional performance against shear and compression forces and flexible vertically and stable horizontally
  • Metal cupmount component is cold-rolled steel coupled with an elastomer-in-compression design
  • High-grade neoprene elastomer provides resistance to oil and ozone
  • Each side flange has through holes allowing for effective attachment to supporting equipment structure
